Office furniture products
Simon 400
Round connection sockets for furniture.
The workplace changes everyday
Elegant, round connection sockets and USB A+C chargers that can be aesthetically integrated into the surface of office furniture, sofas or armchairs.

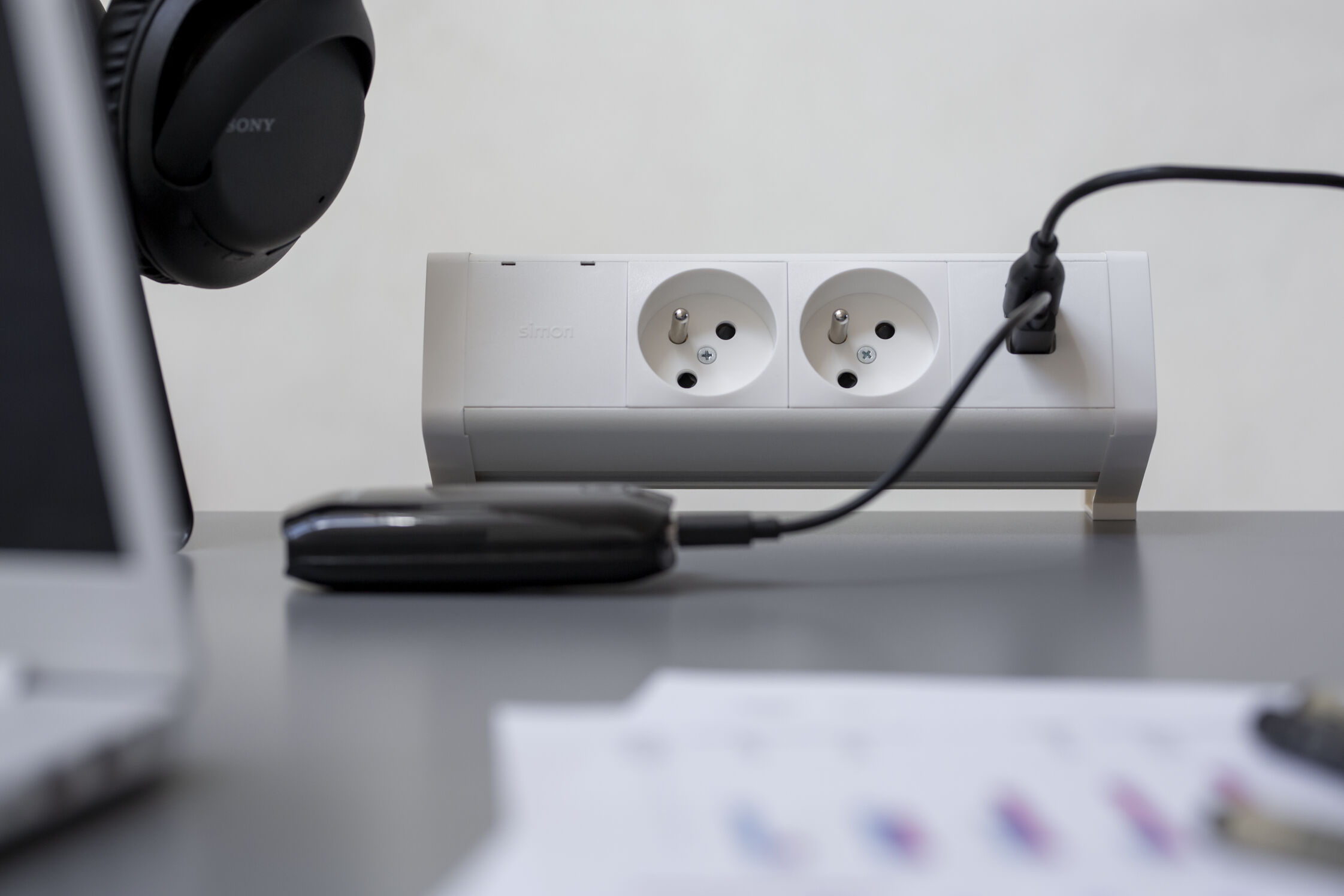

Office power supply systems
Office power supply systems of the Simon 480 series are ready-made solutions for office furniture, which enable effective management of the workplace also at home. Simon 480 are complete power supply sets with easy assembly and connection to the electrical network.
Power strips

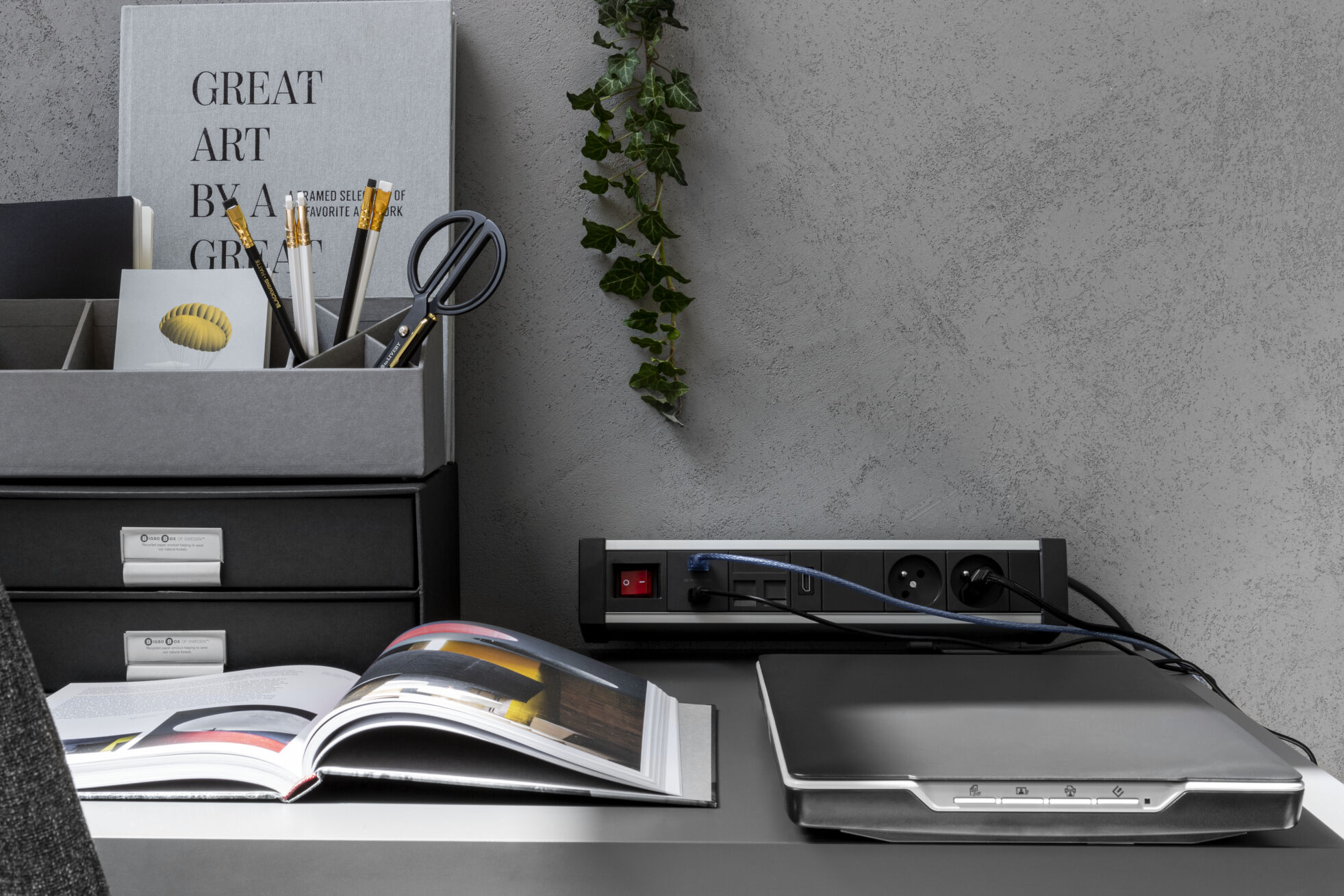

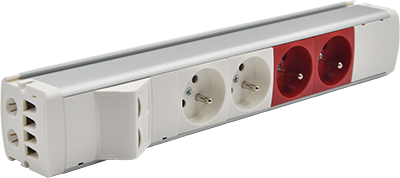

Standard strip
Solid and practical solutions for workstations, shallow housing profile, invisible to the user.

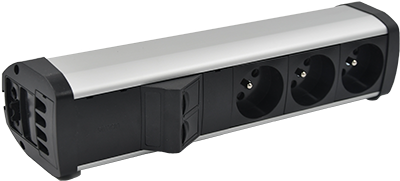

Enlarged strip
Deep housing profile, more space for power cables and installations with more data and multimedia ports, invisible to the user.
Desktop Power sets

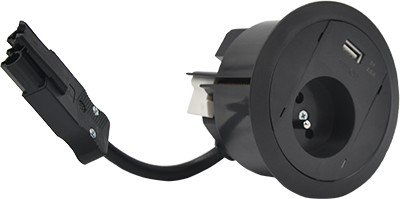

Furniture socket
A solution that takes up minimal space, intended to be used instead of furniture grommets.

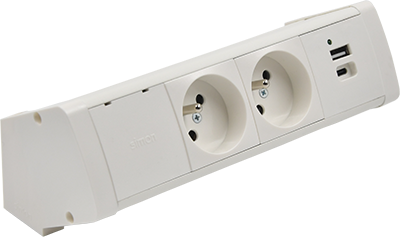

Desktop socket set
An effective solution in situations where access to visible power and data sockets is required.
Solutions for Conference room

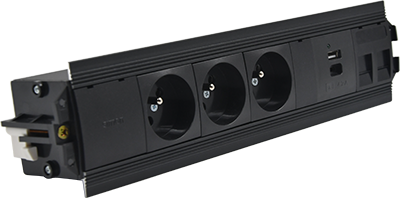

Mediaport Indesk
A solution adapted to situations where power is frequently used, with the possibility of access from both sides of the desk.

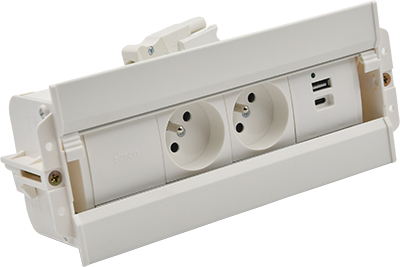

Mediaport Spinner
A solution that closes or opens network sockets, data ports and multimedia ports by moving a button.

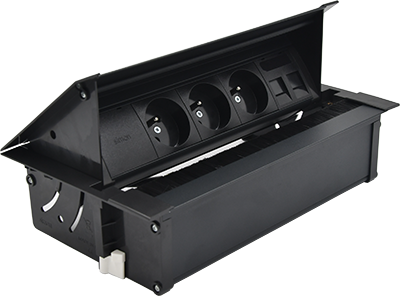

Mediaport Cover
Aesthetic power panel mounted in the countertop. Can be used both open and closed.

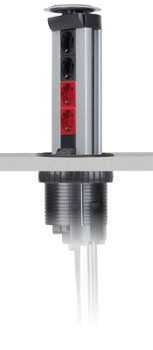

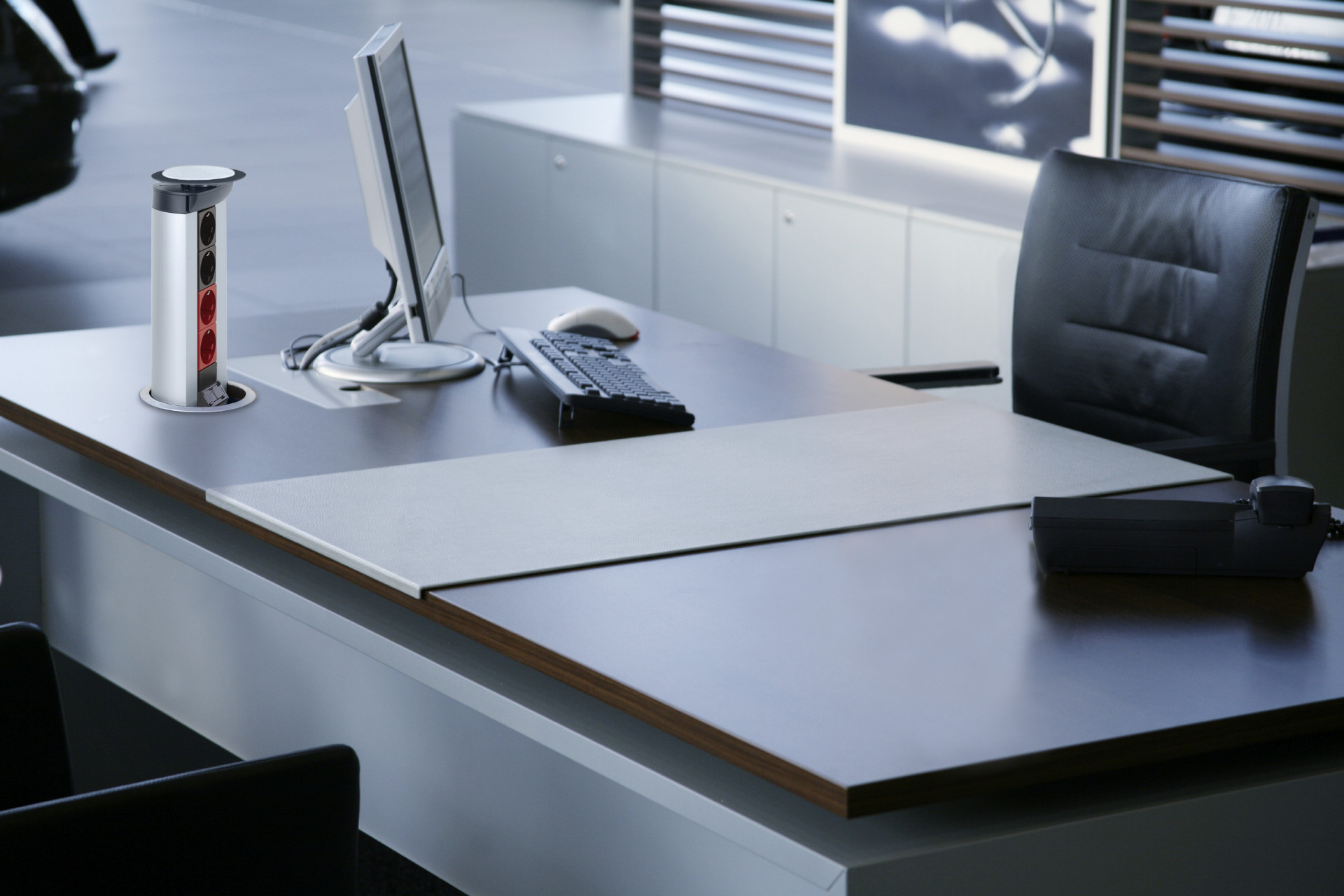

TELEBLOK
power blocks
Teleblok power blocks enable the creation of sets of electrical, telecommunications and multimedia sockets in table and desk tops as well as in furniture, e.g. kitchen furniture.
The telescopic design allows the sockets to be pushed in and out depending on current needs.

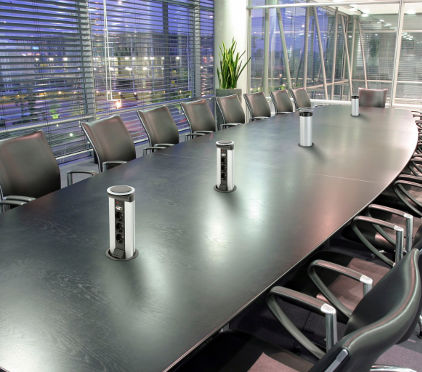

Offices and conference rooms
Thanks to the use of TELEBLOCKS, the connection of office devices is very simple, effective and aesthetic.
A major advantage is the ability to hide the TELEBLOK with the plugs plugged in and hide the cabling inside the tabletop.

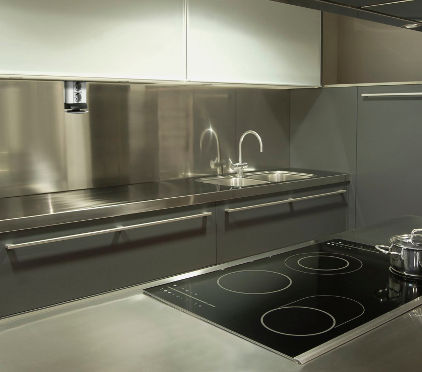

TELEBLOK in the kitchen
It is possible to mount TELEBLOK in an inverted position, e.g. in kitchen cabinets. Thanks to this solution, it is possible to aesthetically hide the sockets and protect them from accidental flooding.

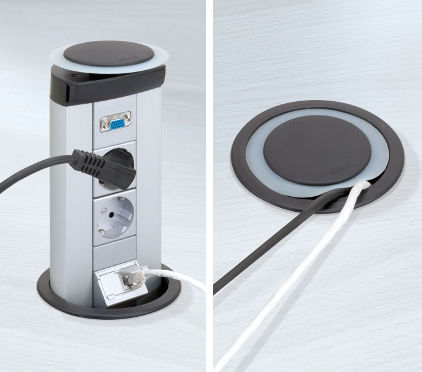

Rubber grommet
The TELEBLOK cover is equipped with a rubber grommets allowing the cables to be led out in the closed position with the plugs inserted.
It is possible to close the TELEBLOK also with straight plugs connected.
Installation of 2 to a maximum of 6 K45 modules (45x45mm).
The profile is made of anodized aluminum, which ensures high durability and operational reliability.
There are three colour versions of the TELEBLOK top cover available: grey graphite with a white pass-through, matt chrome with a graphite pass-through and an all-graphite version.

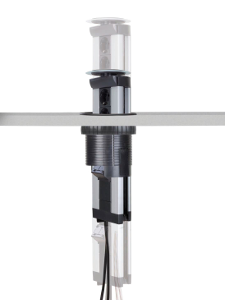

Automatic TELEBLOK
TELEBLOK in the 5-module version is also available with a gas telescope. The telescope automatically extends TELEBLOK after pressing the cover.
OFIBLOK
power blocks
Solutions facilitating the delivery of installations to workstations.
The design of the blocks facilitates access to the necessary media in the workplace.
The use of any K45 modules allows you to create sets of sockets for any purpose.

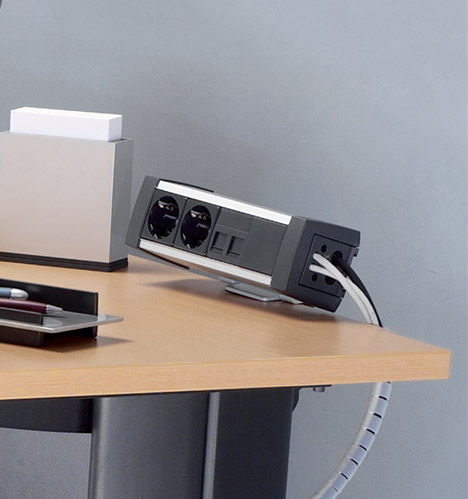

OFIBLOK PLUS
The profile is made of aluminum – a guarantee of high durability of the finished set.
5 sizes from 3 to 8 modules in the K45 standard (45x45mm). Blocks are available in aluminum graphite.
Thanks to the rich equipment available in the K45 standard, it is possible to create sets of sockets for any purpose, e.g. multimedia sets.
The use of additional mounting brackets allows the product to be adapted to the requirements of the installation and users. The brackets available are: single, double, portable, magnetic and DIN rail.
To introduce the installation into OFIBLOK PLUS, an appropriate connection cover must be used. Covers are available in versions for direct cable entry, on a pipe or gland, for ducts and with quick connectors or IEC320 sockets.

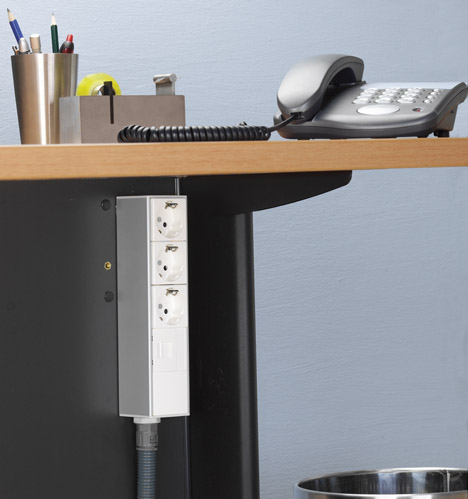

OFIBLOK COMPACT
Thanks to their small external dimensions, they can be used in places where it is important to limit the size of the installation.
9 sizes from 2 to 10 modules in the K45 standard (45x45mm).
The side wall can be fitted with quick connectors to create sets for easy disconnection and transfer of installations.
The use of additional mounting brackets allows the product to be adapted to the requirements of the installation and users. The brackets available are: single, double, portable, magnetic and DIN rail.
The K45 standard (45x45mm) fittings are installed directly in the OFIBLOK COMPACT profile without the use of additional tools.
OFIBLOK COMPACT can be used in various types of installations other than tabletop connections, e.g. consolidation points under the floor, workshop strips, strips with lighting switches.

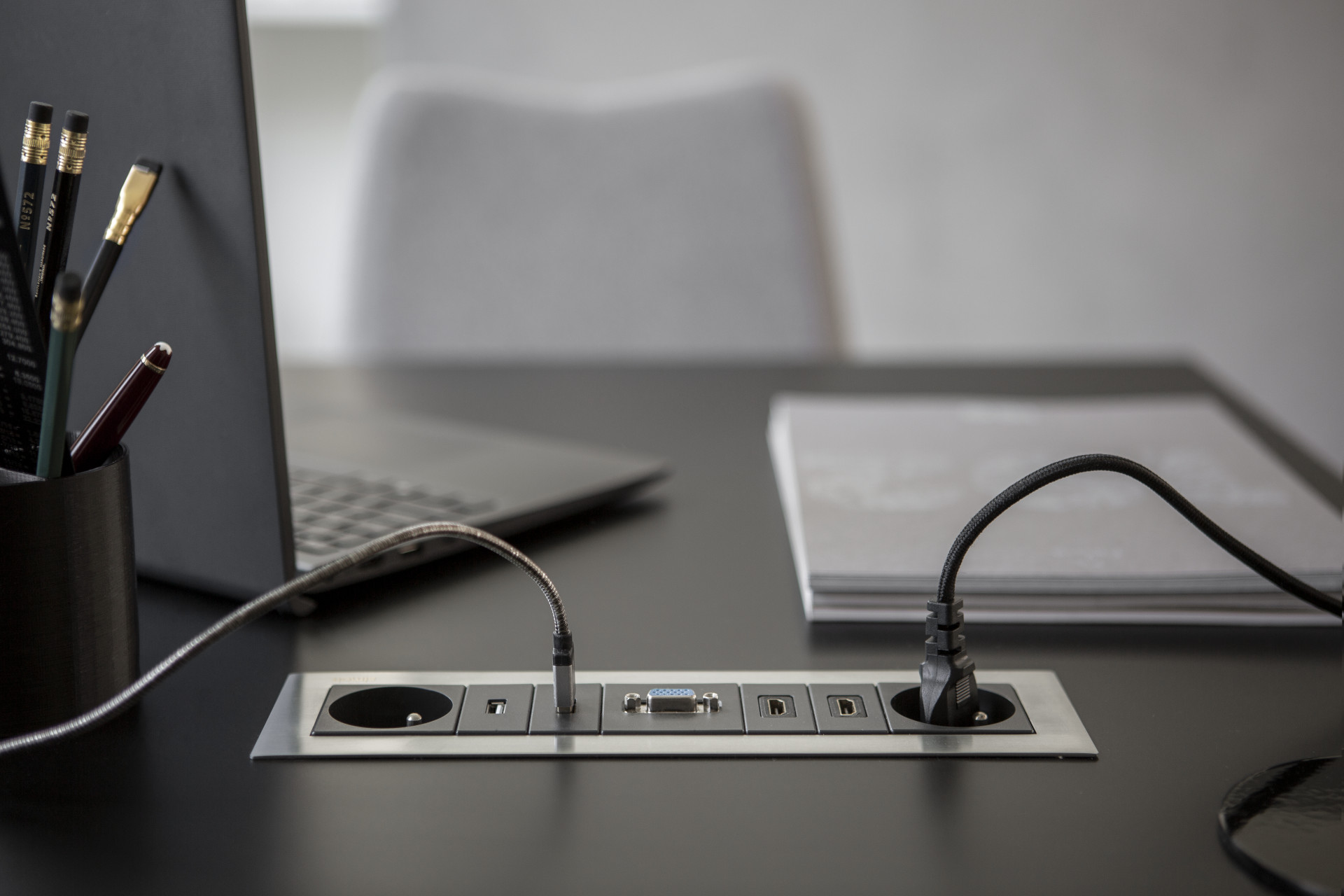

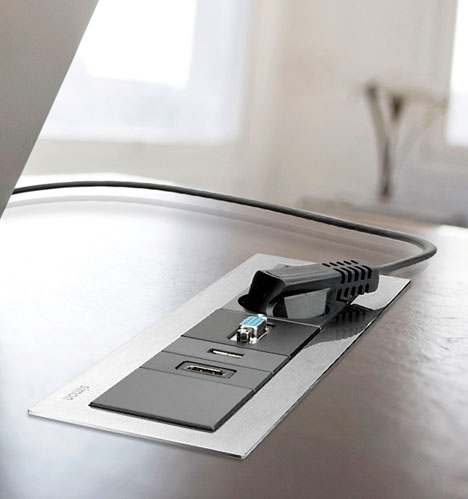

OFIBLOK LINE
OFIBLOK LINE power blocks enable the creation of sets of electrical, telecommunications and multimedia sockets in table and desk tops as well as in furniture.
They are available in sizes for 4 and 6 K45 modules (45 x 45 mm).
A version is available with the installation inserted through the side covers and through the grommets in the bottom of the profile in the case of thicker countertops that prevent the side installation.
The frame is made of brushed chrome steel.
Thanks to its aesthetic finish and delicate lines, OFIBLOK LINE is used in modern office furniture. They integrate perfectly with countertops.
To complete the installation, select the appropriate base for mounting the sockets and the OFIBLOK LINE metal finishing frame.
The base profile can accommodate any K45 standard equipment in the amount of 4 or 6 pieces, depending on the OFIBLOK version.
K45 sockets and plates can be used in graphite, white or aluminum versions. This allows you to choose the right finish to match the table’s color scheme.
To mount on the table top, in a surface that prevents the use of screws, e.g. glass, stone, etc., the dedicated KSF7 mounting bracket should be used.
As standard, the frame is mounted by screwing it to the tabletop through holes in the side edge of the frame.
