Simon 500 surface-mounted and flush-mounted boxes
A range of products that facilitate the distribution of electrical, telecommunications and multimedia installations.
Their main advantage is the ability to create sets of sockets of different types at one electrical-logical point. SIMON 500 surface-mounted and flush-mounted boxes are available in 5 sizes for 1, 2, 3, 4 and 6 SIMON 500 modules (100×50). After using adapters for K45 modules, it is possible to mount from 2 to 12 modules in size 45x45mm.
There are 3 color versions of the boxes: white, gray graphite and aluminum. The offer includes plastic and metal products.

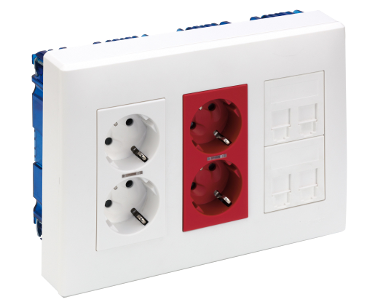

Flush-mounted box

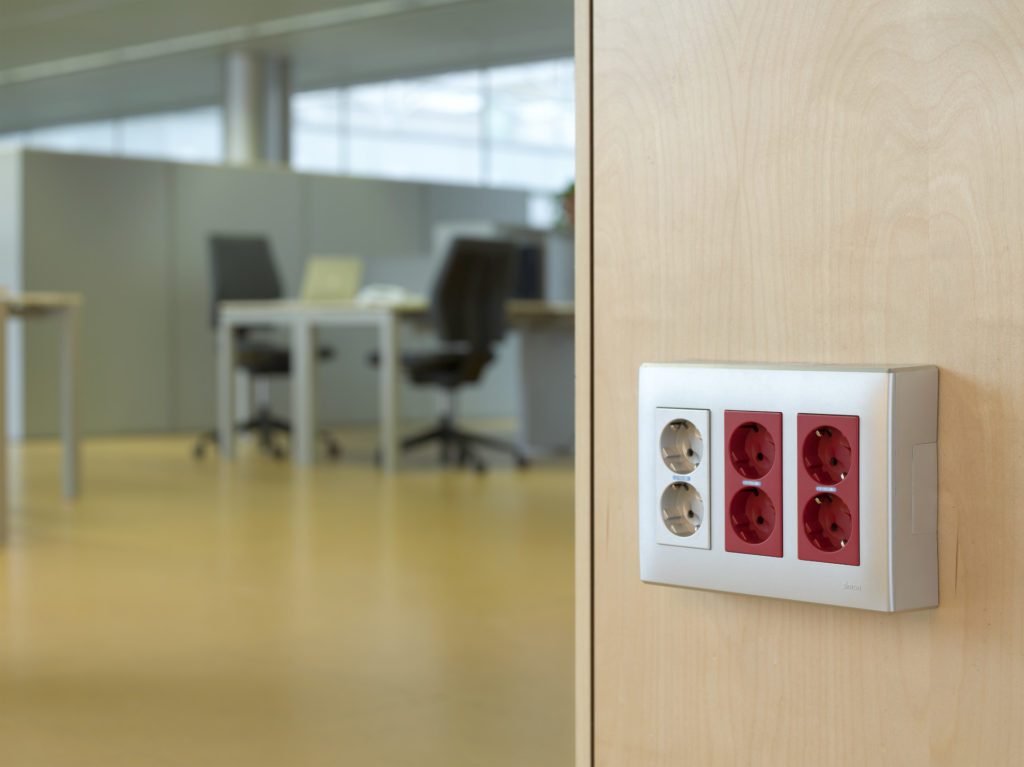

Surface-mounted box

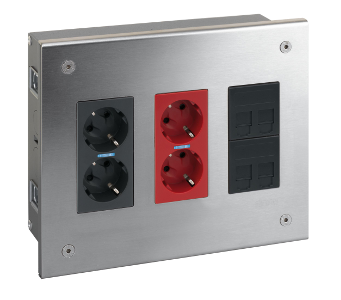

Metal flush-mounted box

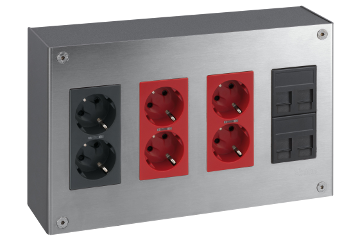

Metal surface-mounted box
It is possible to deepen the housing by an additional 25 mm using a deepening element dedicated to 3- and 4-module boxes.
The resulting internal depth of 80mm is useful in higher category structured cabling installations, audio-video installations and for the use of additional automation directly behind the sockets.

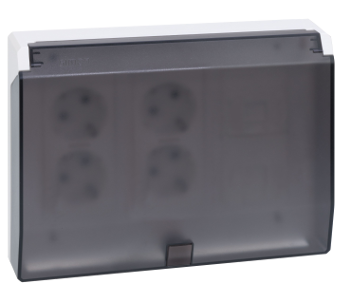

3 and 4 module boxes can be equipped with a frame with a cover hiding the sockets. The cover in the closed position allows the cables to be led out from the sockets

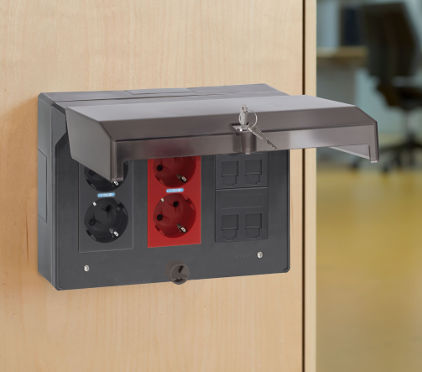

The cover can be additionally equipped with a key lock, which makes it possible to protect the sockets against access by unauthorized persons.
Cover for surface-mounted box
Cover for flush-mounted box

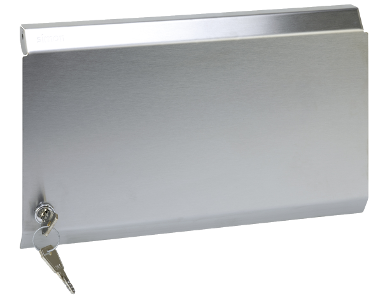

Cover for metal box
Advantages of Simon 500 flush-mounted box

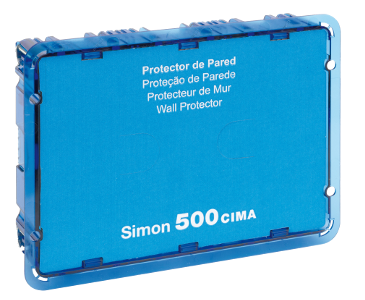

Assembly cover
The flush-mounted terminal box has a cover to protect interior of the enclosure during finishing works.
Comfortable mounting

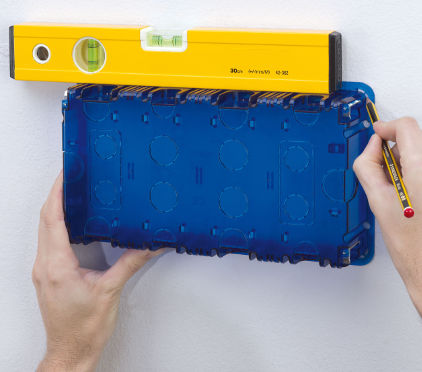

The flush-mounted box has holes in its corners, which make it possible to use it as a pattern for preparing an appropriate mounting hole in a wall.
Advantages of Simon 500 surface-mounted box
Adapters for installation ducts

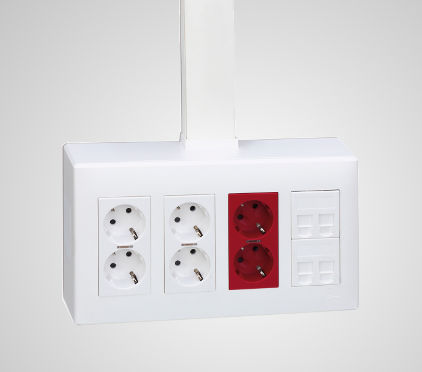

The surface-mounted boxes may be fitted with optional adapters for mini-trunking or tubes to lead the installation to boxes aesthetically.

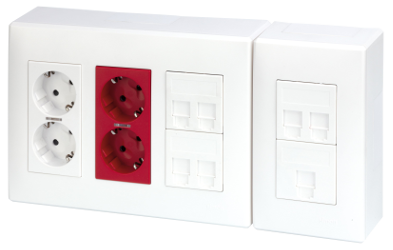

Boxes combining
A dedicated connecting member makes it possible to connect subsequent boxes in sets, in order to increase the number of accessible modules.
Simon 500 Metal surface-mounted and flush-mounted boxes

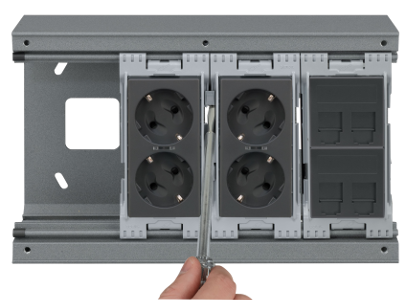

Equipments holders

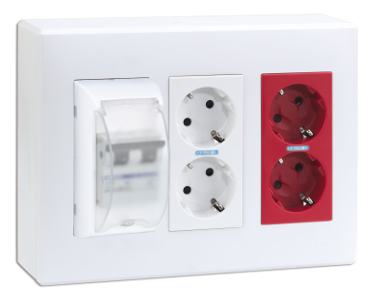

Equipment holders may be combined in sets, which makes it easy to mount individual types of installations and circuits. Dedicated switches for Simon 500 socket outlets facilitate the installation distribution between the socket outlets inside the enclosure.

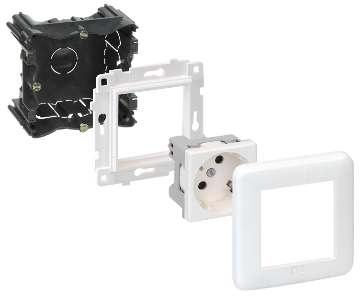

Enclosures for K45 modules

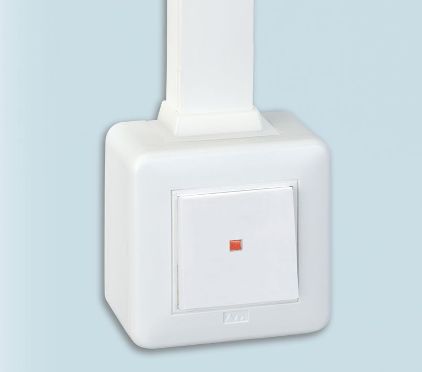

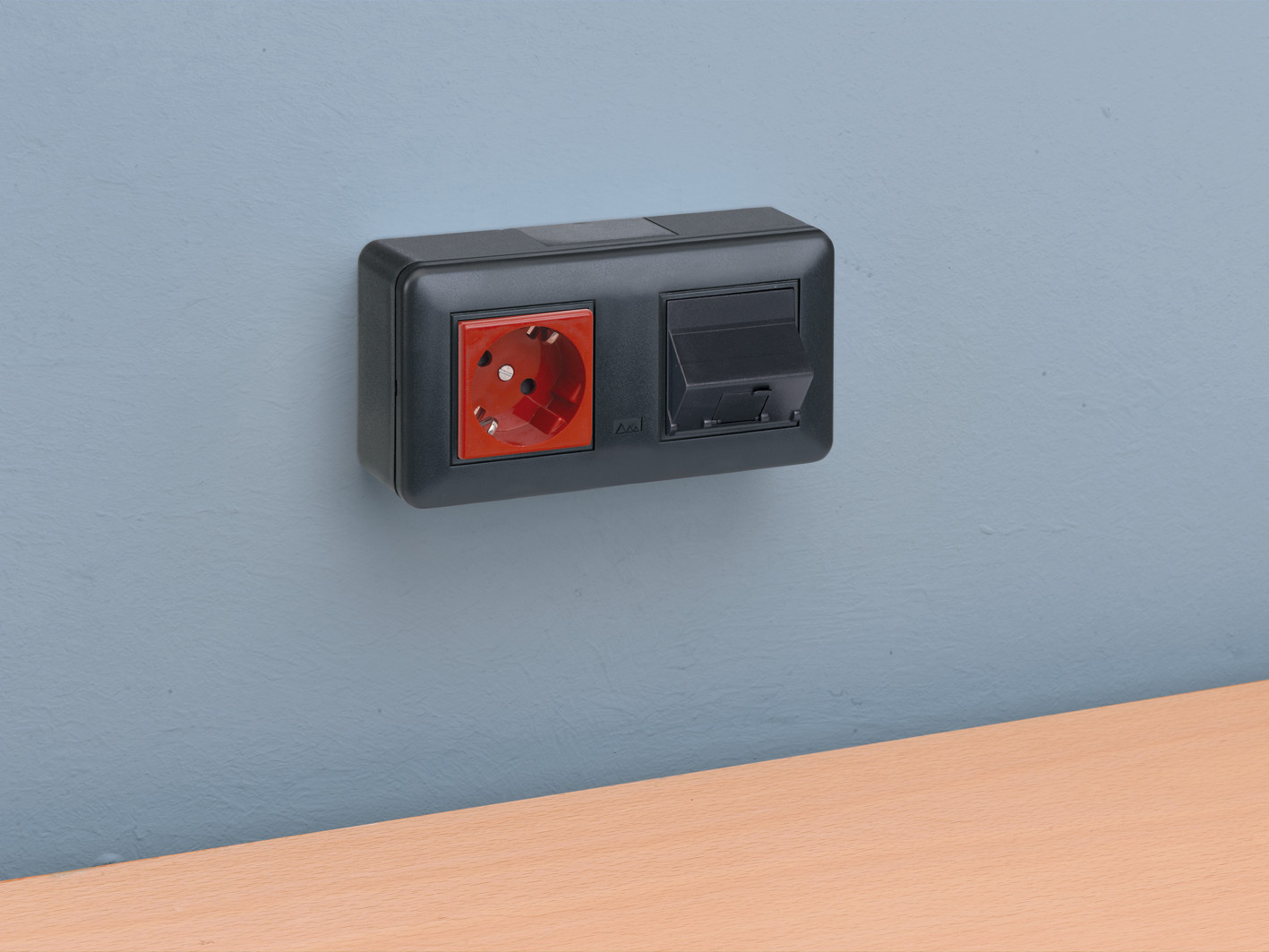

Enclosures for K45 equipment mounting are designed for creating simple sets of socket outlets, containing one or two K45 flush-mounted or surface-mounted modules
Enclosure deepening

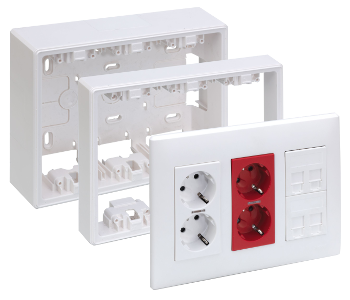

There is a possibility to combine a flush-mounted installation with a surface-mounted one in order to deepen the installation. Surface-mounted terminal boxes may be mounted directly on flush-mounted terminal boxes. Such a solution can be applied in higher category structured cabling installations.
Variants and adapters
Enclosures for K45 modules are available in versions for 1 or 2 K45 (45 x 45 mm) modules. Two enclosure colours are available: white and grey graphite.
Dedicated adapters for installation ducts make it possible to lead the installation to the enclosure aesthetically.
Full set of elements

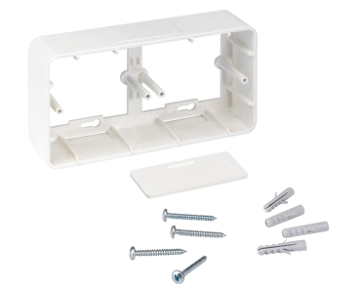

The surface-mounted terminal boxes for enclosures are supplied with all needed assembly elements.
