Wall and floor trunkings

Wall and floor trunkings are an ideal solution for renovating rooms and in facilities where the possibility of simple modernization and expansion of the installation is important.

Wall trunkings

CABLOPLUS & CABLOMAX

with the possibility of direct mounting of K45 modules (45 x 45 mm) without the use of additional adapters and tools.

CABLOPLUS

made of PVC or aluminium.

Both versions come in 4 sizes:

  • 185x55mm, three-slots.
  • 90x55mm, one-slot,
  • 130x55mm, two-slots,
  • 160x55mm, two-slots,

CABLOMAX

covers made of PVC or aluminium

Both versions are available in 3 sizes:

  • 210x55mm.
  • 130x55mm,
  • 170x55mm,

Direct instalation

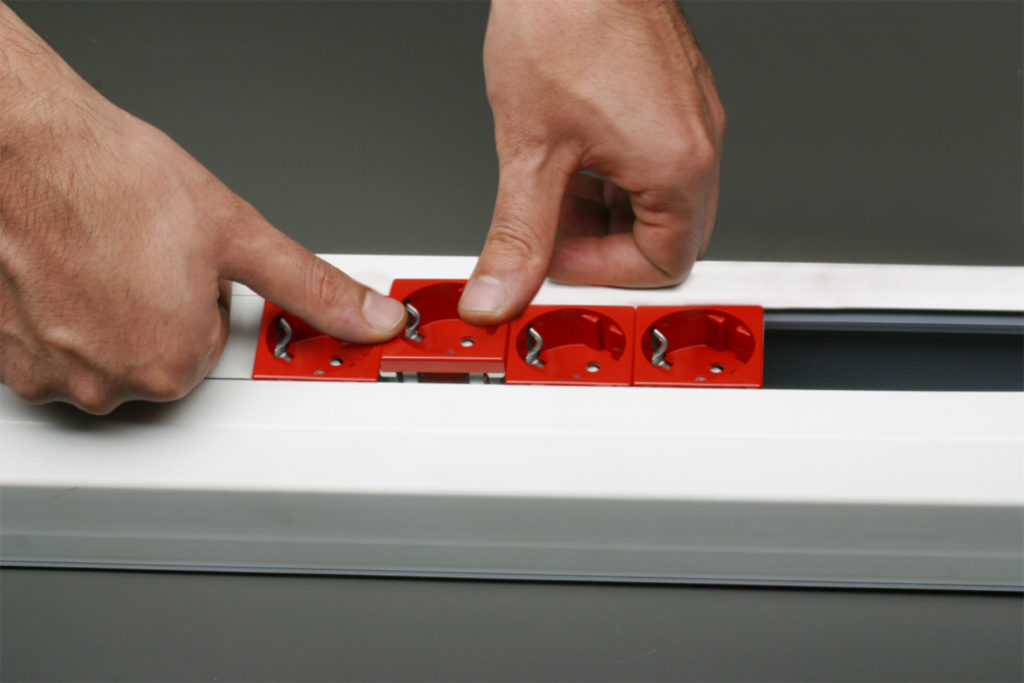

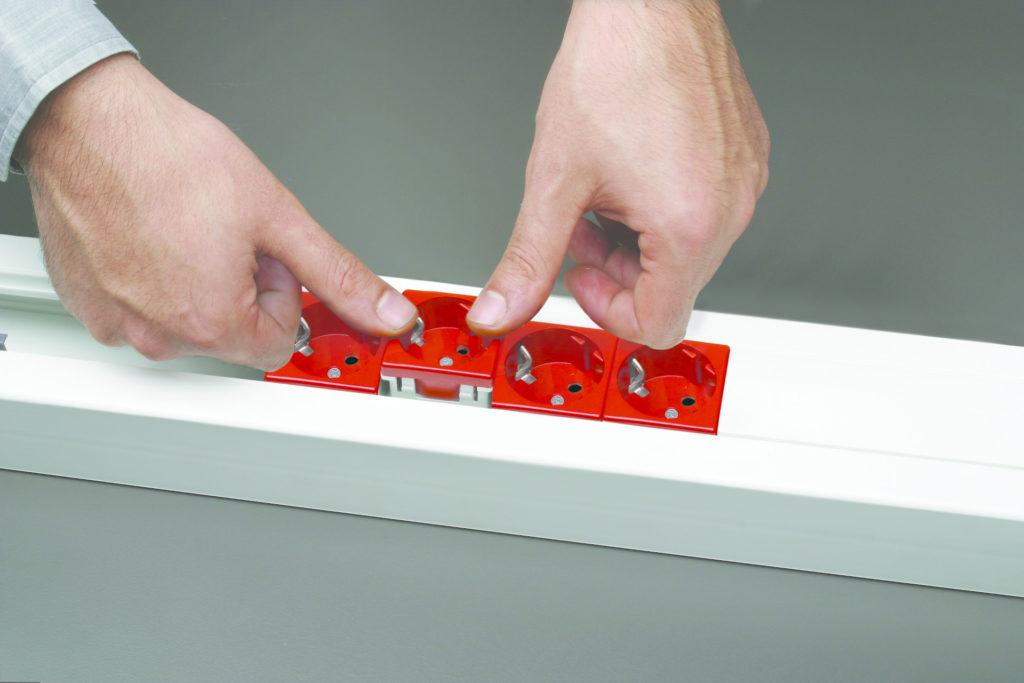

K45 standard modules (45 x 45 mm) may be mounted directly within a trunking profile, with no use of additional tools.

The installation does not require the use of additional adapters and supports, which helps reduce the overall installation costs.

Any K45 equipment

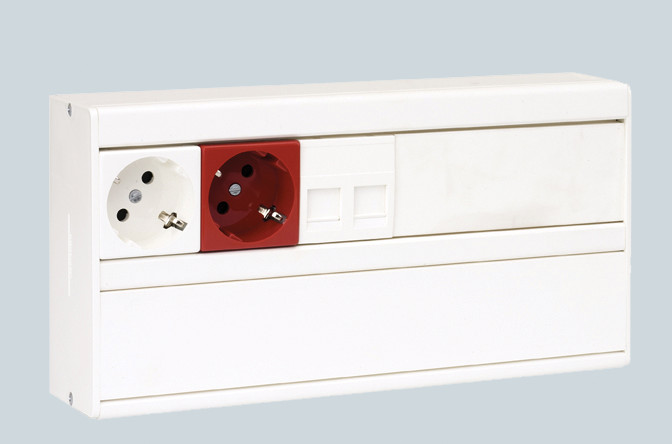

In CABLOPLUS and CABLOMAX trunkings, you can use any equipment available in the K45 standard (45x45mm), e.g. electrical sockets, ICT plates, multimedia and audio-video plates, lighting switches and plates for modular equipment.

Wall trunkings CABLOPLUS

Accesories

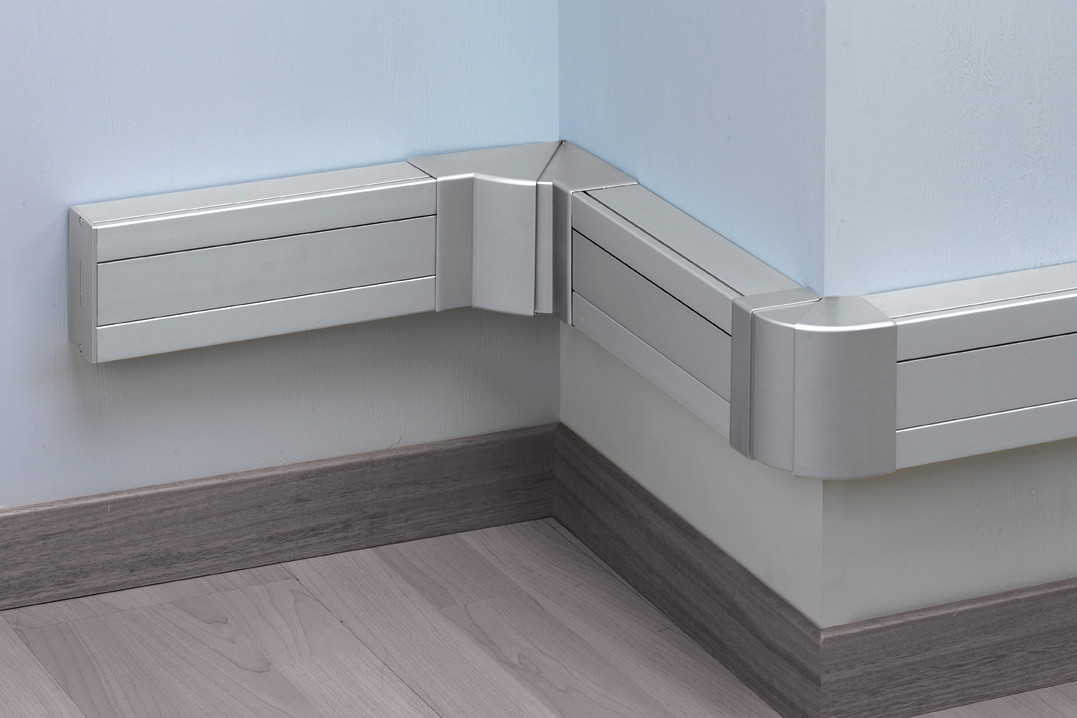

All necessary assembly accessories are available: fiber optic bends, flat angles, adjustable inner and outer angles, channel connectors, end caps, T-connectors, separation partitions, fiber optic bends.

Usage

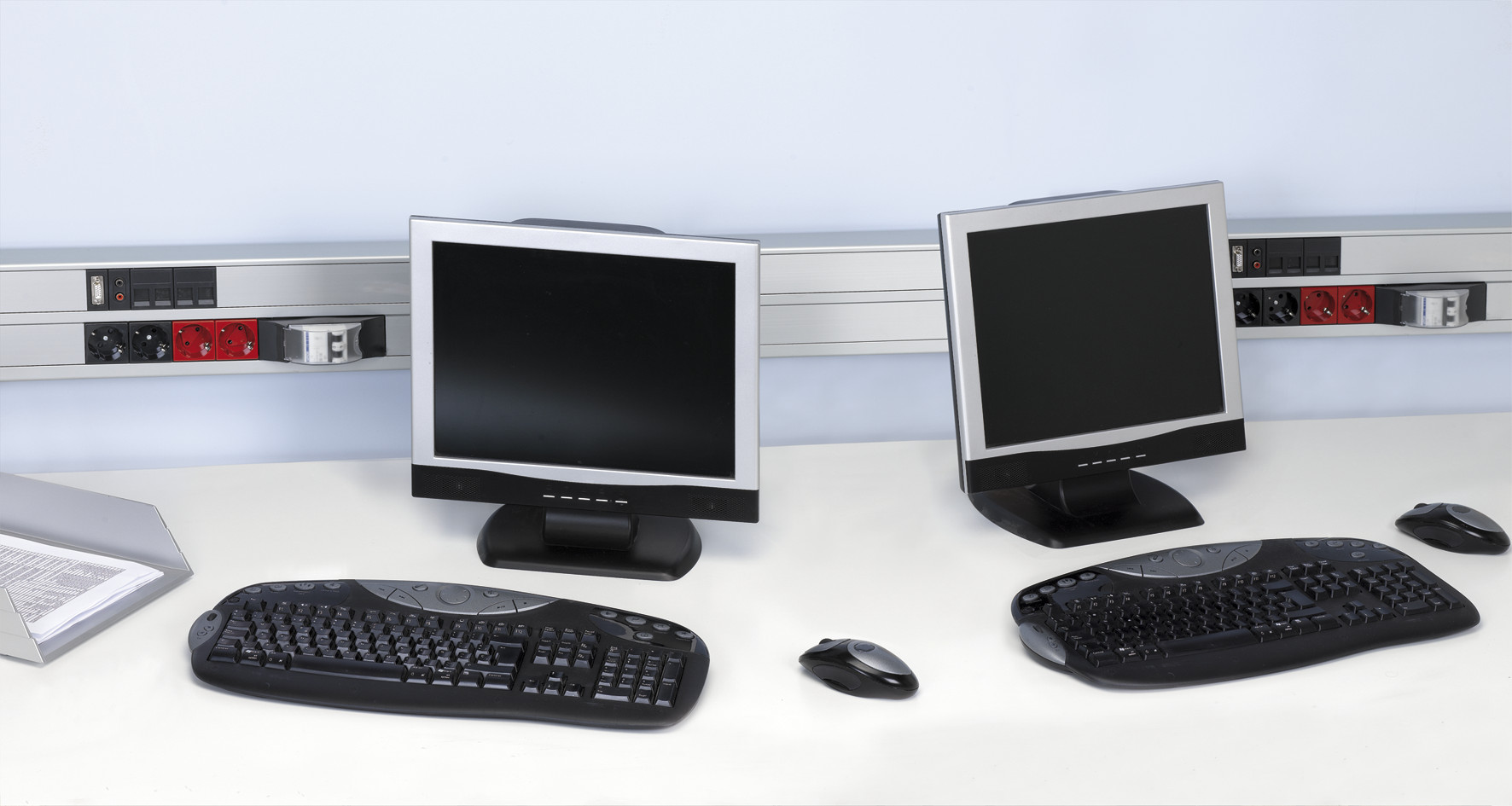

The use of channels does not have to be limited to wall mounting. Installation channels can be successfully installed in furniture such as reception desks, conference tables or workstation furniture.

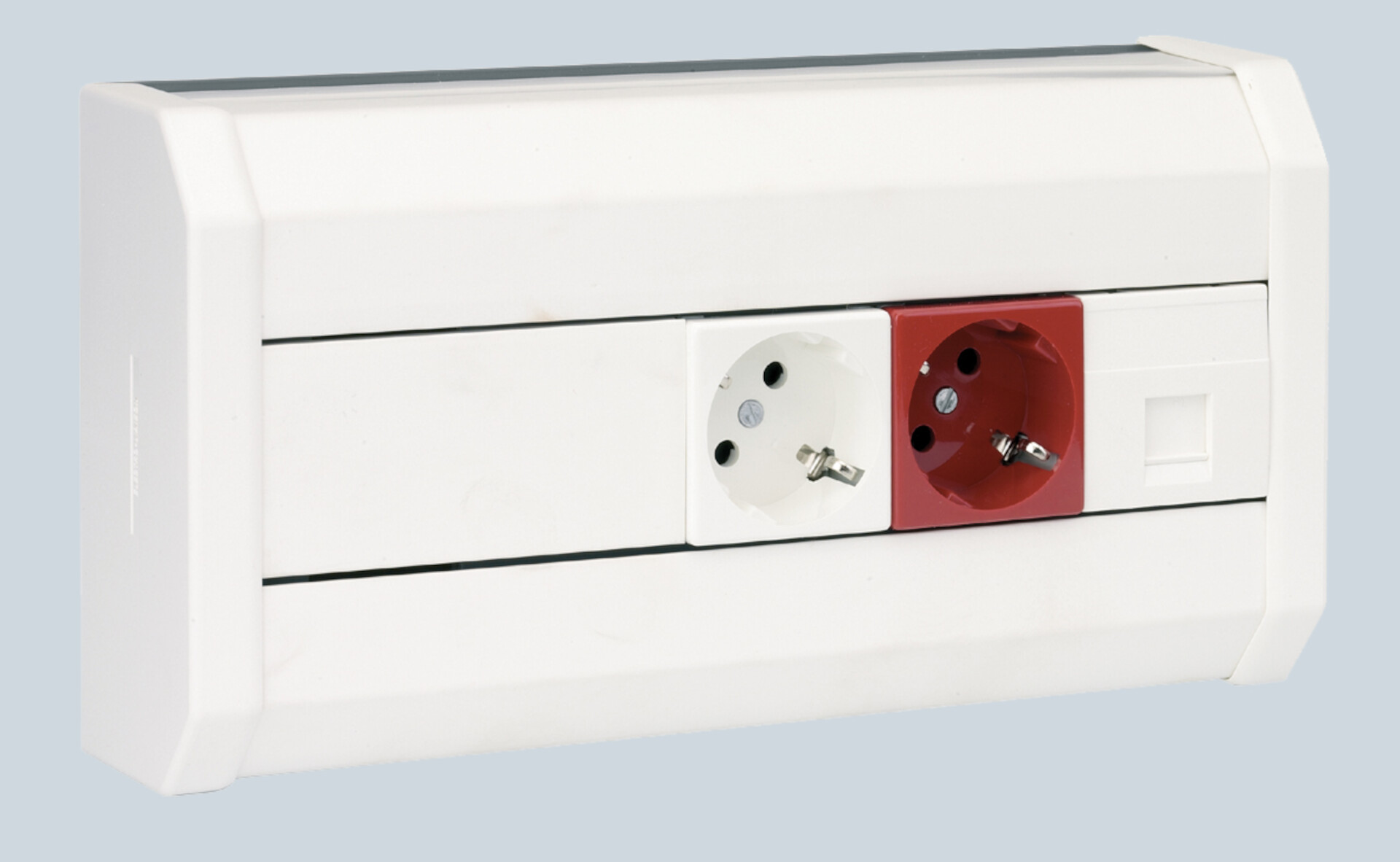

Wall trunkings CABLOMAX

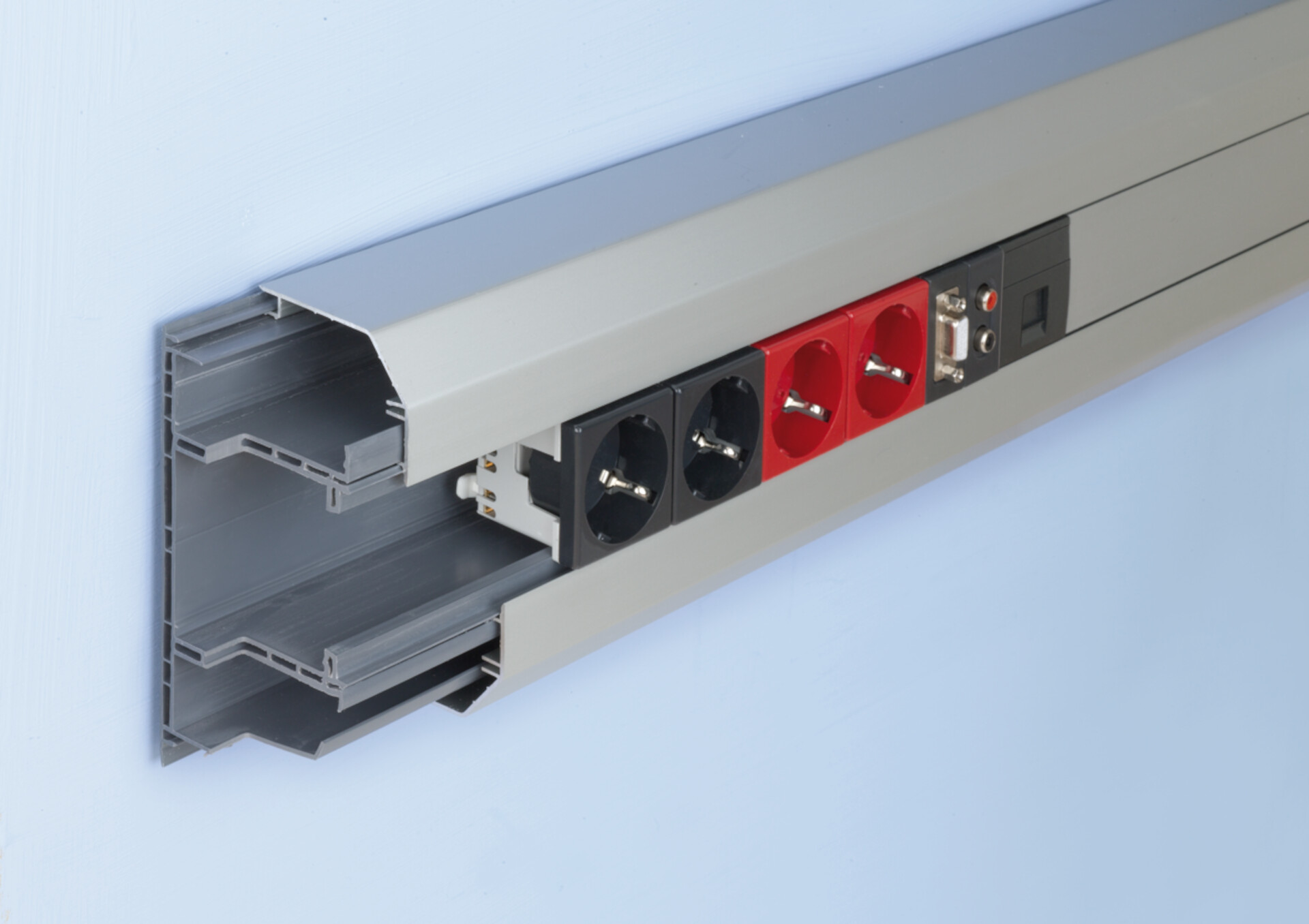

Trunking contstruction

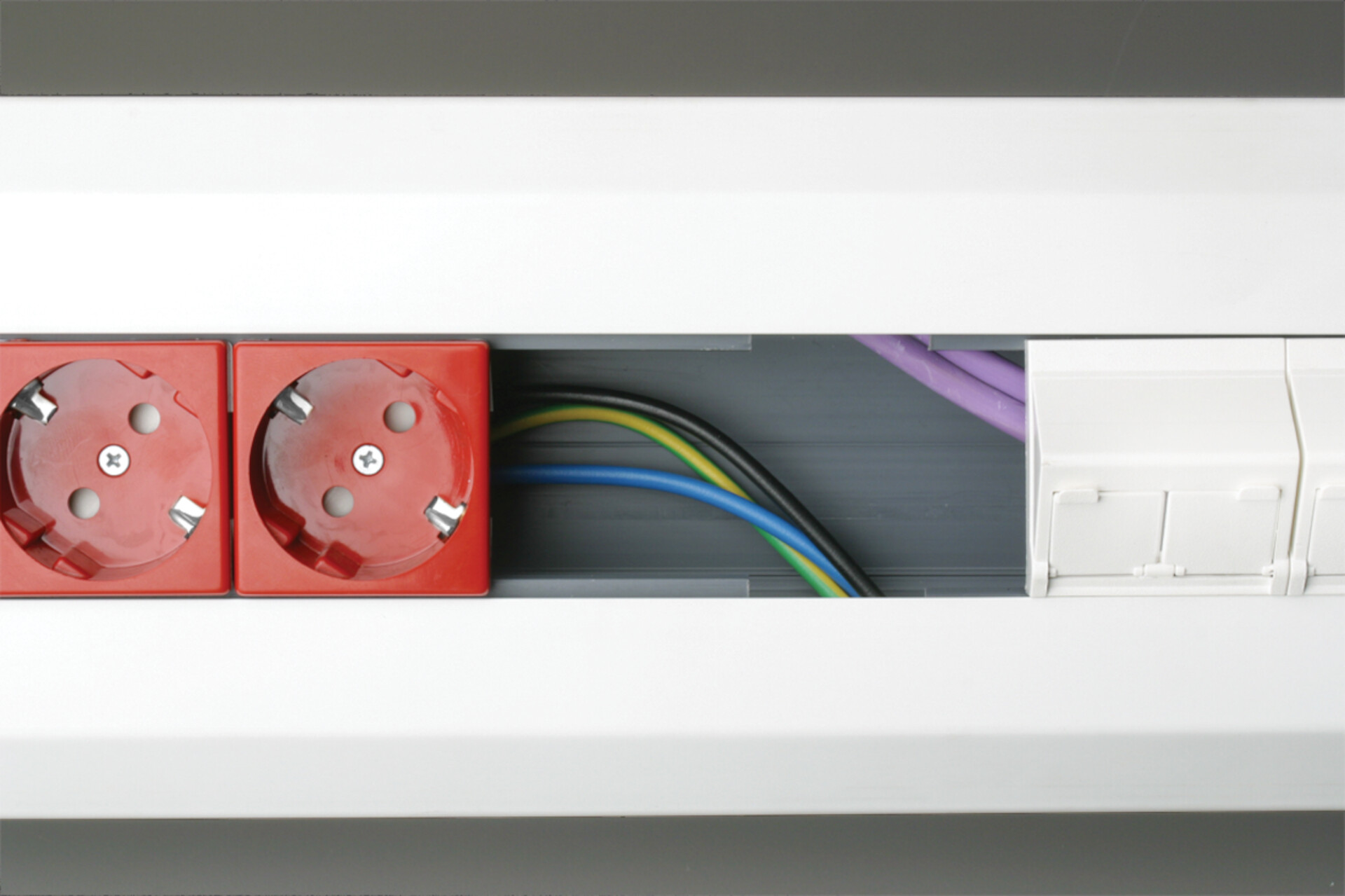

Main central chamber for installing sockets and plates and upper and lower chambers for routing cables. The lower and upper chambers have different heights depending on the channel version.

Installation

Natural separation of electrical wiring from telecommunications, by running the installation in two different chambers separated by the space designated for sockets. The partitions separating the chambers have holes (every 75 cm) for leading the installation to the sockets.

Floor trunkings

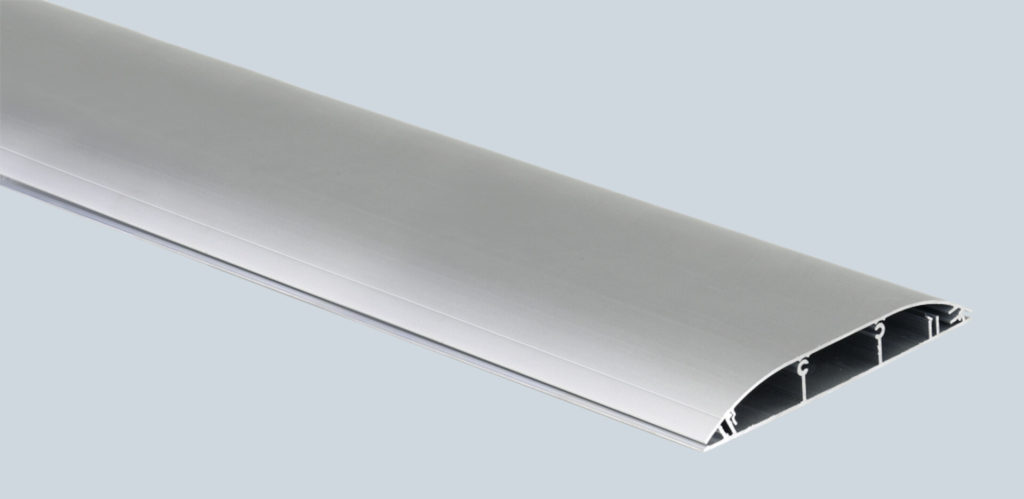

DCS ALU

they are intented for places where it is not possible to run installations under the floor, and for temporary installations, which reduces the costs of additional interference with the floor surface.

DCS ALU floor trunkings are available in sizes 85×18 mm, 130×18 mm and 240×34 mm. The length of a single trunking is 2 m.

DCS trunkings are made of aluminum, which guarantees high durability and much better protection of the installation than in plastic floor channels.

DCS bases

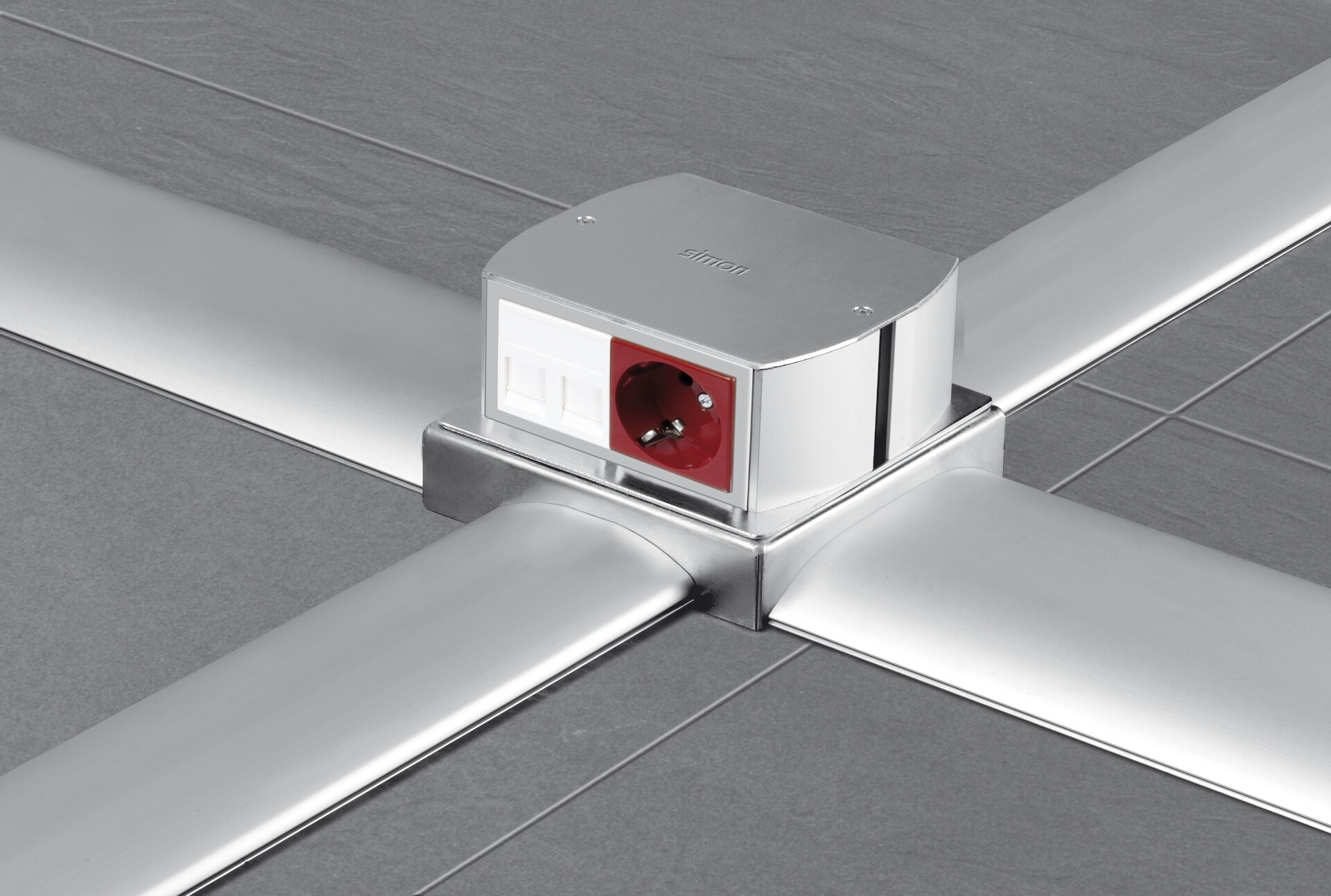

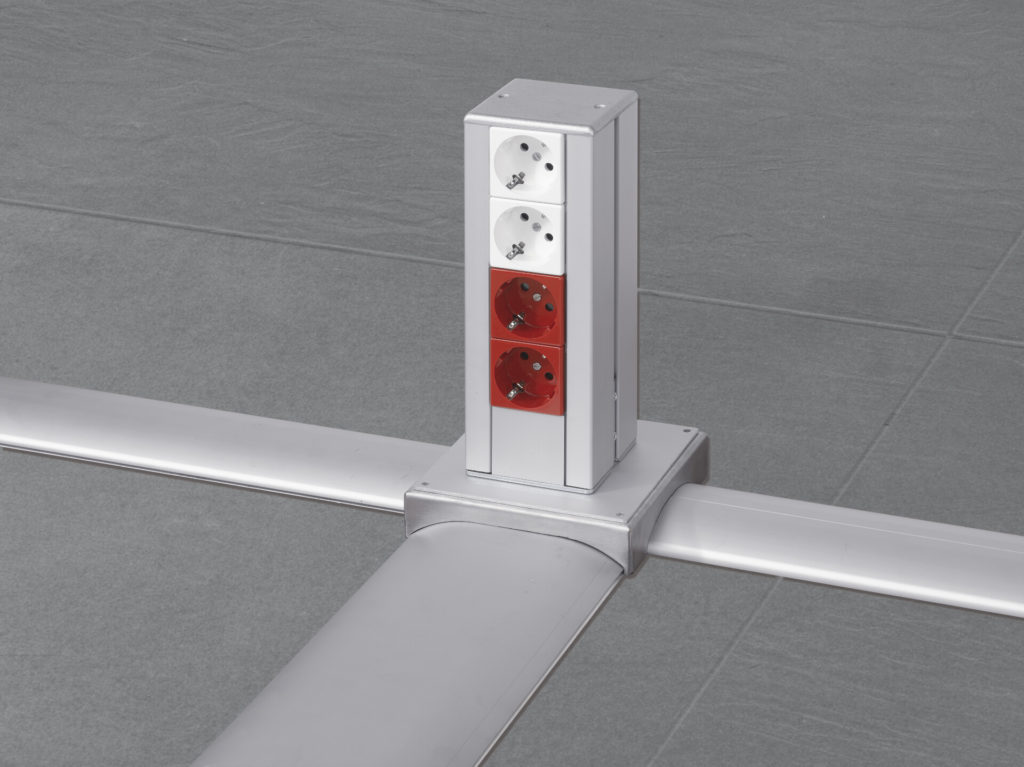

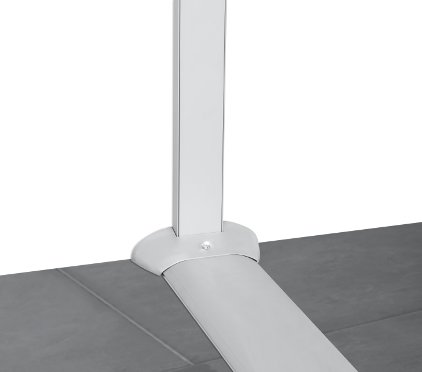

DCS floor trunkings can be equipped with dedicated bases on which ALK mini-columns or KT mini-towers can be mounted.

Reduction angles

Additional reduction angles enable the installation to move from the wall surface to the floor and into the DCS trunkings.

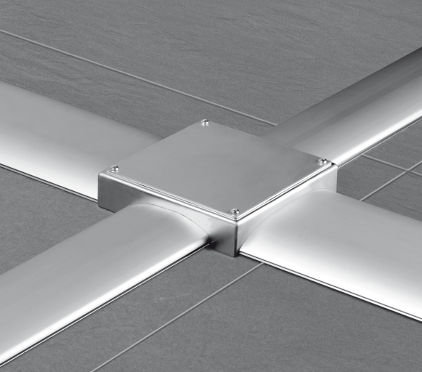

Connecting trunkings

DCS bases can also be used as connectors for DCS floor trunkings. Different versions are available depending on the diameter of the trunking used.

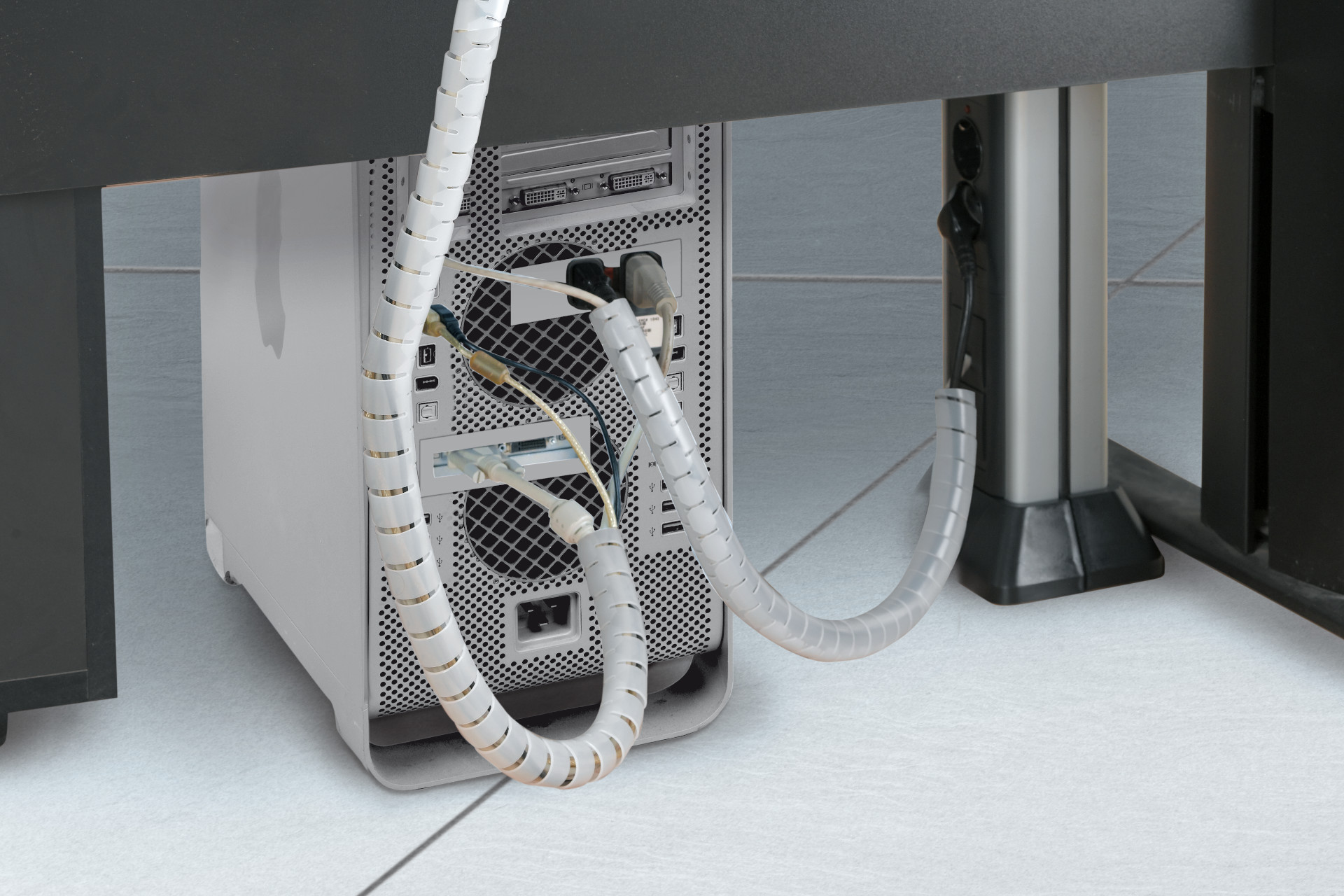

TC cable organizer

aesthetic arrangement of cables, convenient cable management and high product flexibility

Cable organizer with 4 slots

It has 4 slots, thanks to which it is possible to segregate and individually route seperate cables. As a result, any replacement is easy and comes down to replacing a specific cable, without the need to pull out all the ones routed inside the organizer.

Made of flexible polyethylene, the organizer is 91 cm long.

The perfect complement to our floor boxes and furniture mounting accessories.

TC organizer diameter is 25 mm; it is available in 2 m length version with an applicator for wires, and in 20 m length version without the applicator. It is also possible to buy the applicator separately.

The organizer is an open protective pipe made of flexible polyethylene, which facilitates leading wires and then arranging a full group.

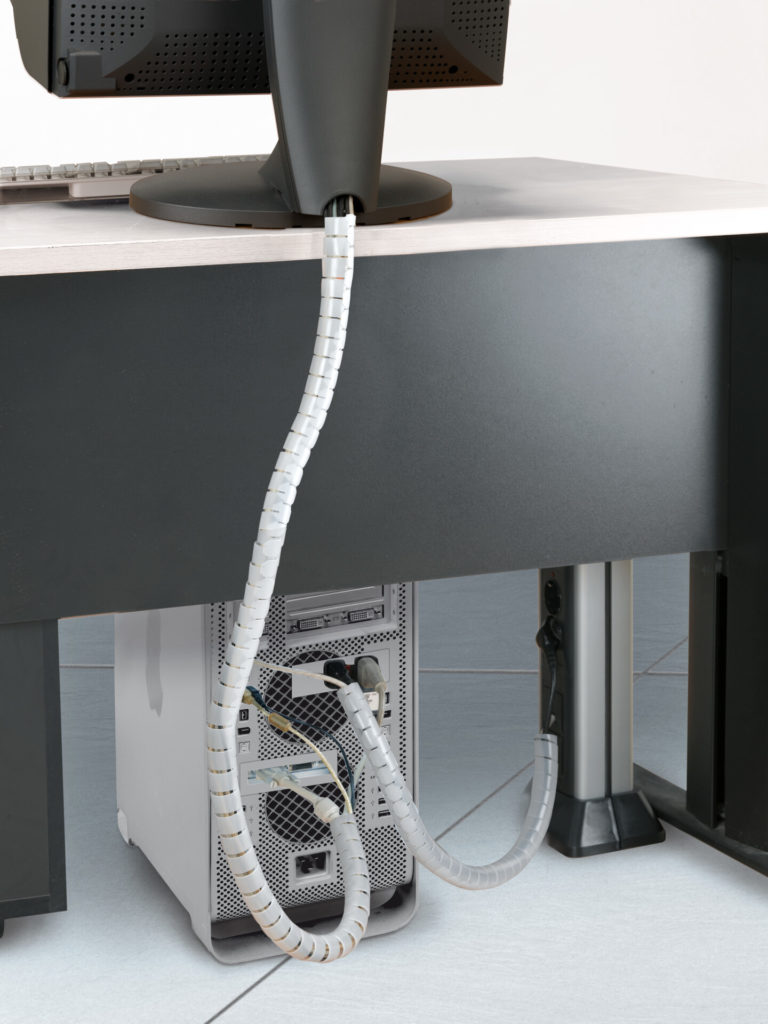

Tidying up the cabling

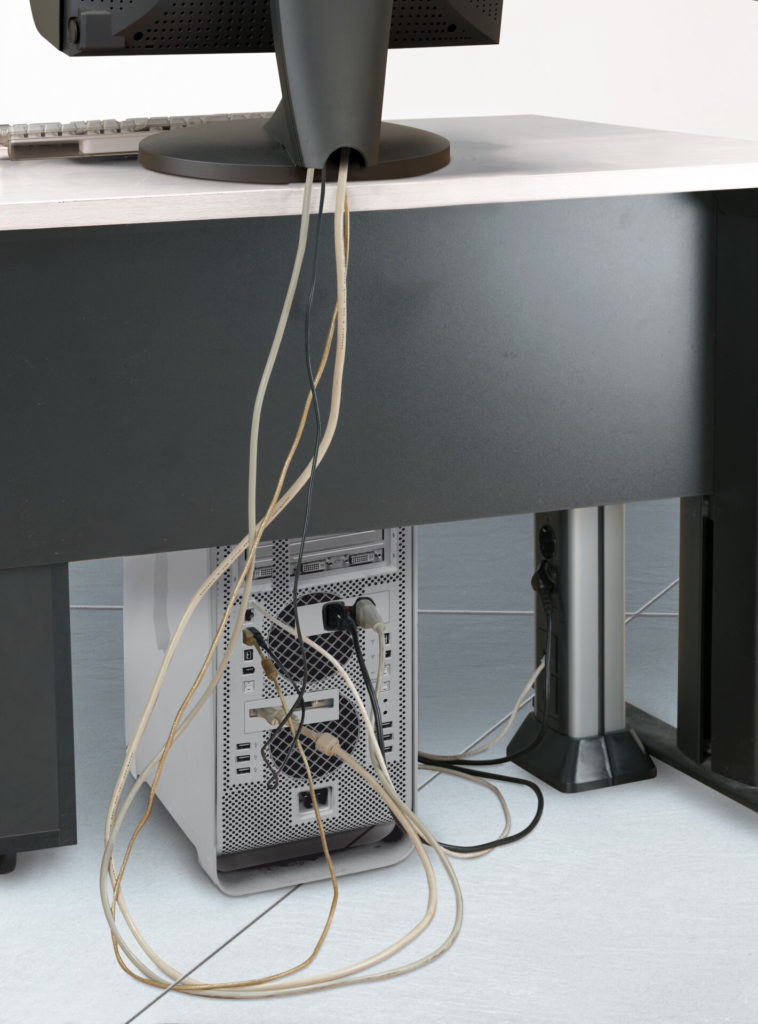

The TC organizer is primarily used to organize cables. An additional advantage of using the organizer is that it protects cables from mechanical damage and from constant tangling of cables, e.g. behind a desktop computer.

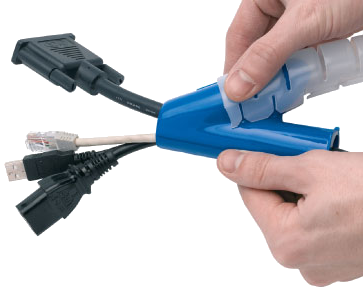

The applicator

The applicator is used for simple placing wires inside the organizer. The cables with plugs are placed in the applicator and then the whole set is pulled through inside the organizer.
